ZF P-6300 GEARBOX
REBUILT GEARBOXES AND PARTS

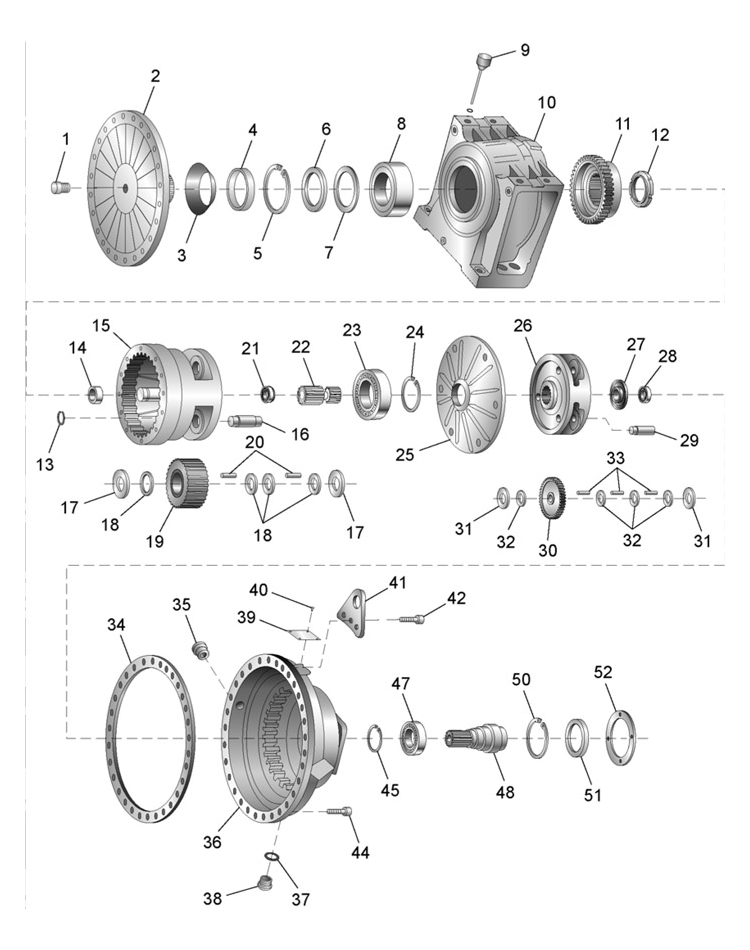

ITEM # PART NUMBER PART DESCRIPTION...... KIT QUANTITY
. P-6300EX GEARBOX-REBUILT . .
* P-6300SK SEAL KIT . 1
** P-6300BK BEARING KIT . 1
1 0631-405-018 PLUG . 1
2 4108-303-292 BEARING FLANGE . 1
3 0734-307-142 SEALING COLLAR * 1
4 4108-306-102 RING . 1
5 0630-502-067 RETAINING RING . 1
6 0630-004-189 THRUST DISK . 1
7 0730-100-233 SHIM,0.2MM . 1
7 0730-100-584 SHIM,0.3MM . 1
7 0730-003-018 SHIM,0.5MM . 1
7 0730-003-019 SHIM,0.7MM . 1
8 0750-117-012 ROLLER BEARING ** 1
9 4108-203-149 OIL DIPSTICK . 1
10 4108-203-152 BEARING HOUSING . 1
11 4108-306-101 CLUTCH HOUSING . 1
12 0737-502-084 SLOTTED NUT . 1
13 0630-501-031 RETAINING RING . 4
14 0635-285-013 JOINT BEARING ** 1
15 4108-303-283 PLANETARY CARRIER . 1
16 4108-303-289 PIN . 4
17 0730-102-684 THRUST WASHER . 8
18 0730-102-816 INTERMEDIATE WASHER . 16
19 4108-303-285 PLANETARY GEAR . 4
20 0750-119-092 NEEDLE BEARING ** 184
21 0635-331-269 BALL BEARING ** 1
22 4108-303-296 SUN GEAR . 1
23 0750-116-137 BALL BEARING ** 1
24 0630-503-018 SNAP RING . 1
25 4108-301-293 BEARING COVER . 1
26 4108-302-147 PLANETARY CARRIER . 1
27 4108-302-007 BEARING PLATE . 1
28 0635-332-196 BALL BEARING ** 1
29 4108-302-062 BEARING PIN . 3
30 4108-302-166 PLANETARY GEAR . 3
31 0730-102-645 THRUST WASHER . 3
32 0730-102-644 INTERMEDIATE WASHER . 12
33 0735-470-120 NEEDLE BEARING . 198
34 4108-306-172 GASKET * 1
35 0632-610-066 OIL SIGHT GLASS . 1
36 4108-201-269 HOUSING . 1
37 0634-304-287 "O"RING * 1
38 0636-302-015 SCREW PLUG . 1
39 0730-365-058 NAME PLATE . 1
40 0631-311-009 GROOVED PIN . 4
41 4108-302-063 LIFTING BRACKET . 1
42 0636-101-729 SOCKET HEAD CAP SCREW . 3
43 NOT USED . . 1
44 0636-101-667 SOCKET HEAD CAP SCREW . 27
45 0630-531-064 RETAINING RING . 1
46 NOT USED . . .
47 0635-331-223 BALL BEARING ** 1
48 4108-301-431 .INPUT SHAFT-21 SPLINE . 1
49 NOT USED . . .
50 0630-502-039 RETAINING RING . 1
51 0634-300-610 SHAFT SEAL * 1
52 4108-302-139 GASKET * 1
