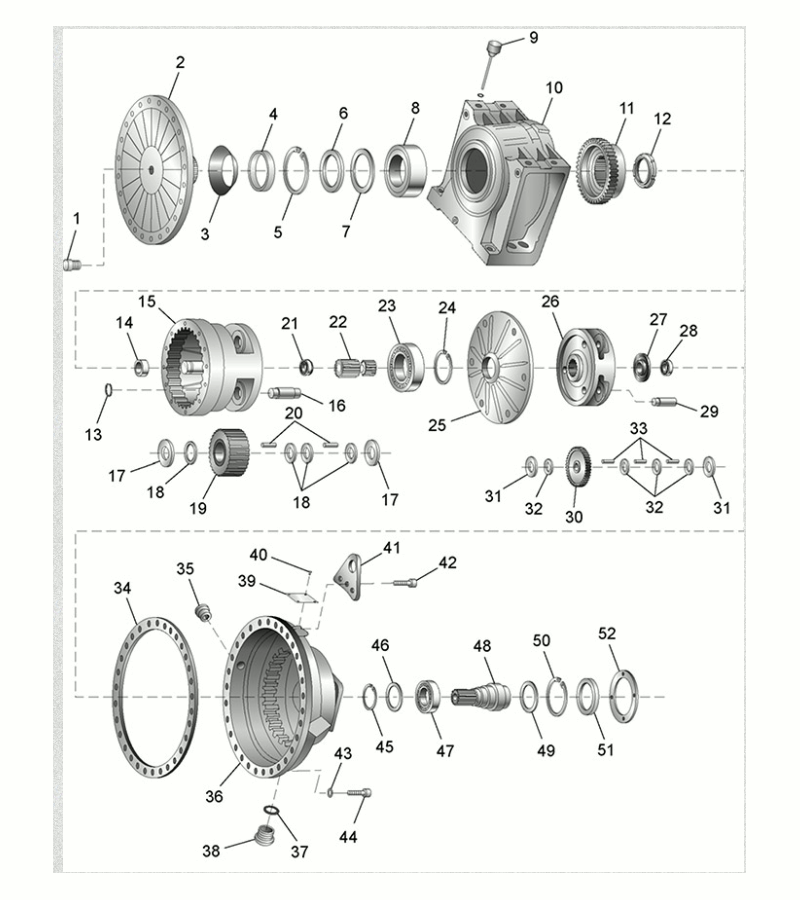

ZF PK-5300 GEARBOX
| PK-5300 | ||||
|---|---|---|---|---|
| ITEM # | PART NUMBER | PART DESCRIPTION...... | KIT | QUANTITY |
| . | PK-5300EX | GEARBOX-REBUILT | . | . |
| * | PK-5300SK | SEAL KIT | . | 1 |
| ** | PK-5300BK | BEARING KIT | . | 1 |
| 1 | 4108-201-228 | HOUSING | . | 1 |
| 2 | 0636-302-015 | SCREW PLUG | . | 3 |
| 3 | 0634-304-287 | "O"RING | * | 2 |
| 4 | 0632-610-066 | OIL SIGHT GLASS | . | 1 |
| 5 | 4108-303-034 | COVER | . | 1 |
| 6 | 4108-301-293 | BEARING COVER | . | 1 |
| 7 | 0634-801-074 | SEALING RING | * | 2 |
| 8 | 0636-015-120 | HEX HEAD CAP SCREW | . | 8 |
| 9 | 4108-301-295 | GASKET | * | 1 |
| 10 | 0730-365-058 | NAME PLATE | . | 1 |
| 11 | 0631-311-009 | GROOVED STUD | . | 1 |
| 12 | 0730-002-171 | SHIM-3.00mm | . | 1 |
| 12 | 0730-002-172 | SHIM-2.75mm | . | 1 |
| 12 | 0730-002-173 | SHIM-2.50mm | . | 1 |
| 12 | 0730-002-174 | SHIM-2.25mm | . | 1 |
| 13 | 4002-302-021 | SHIM-0.50mm | . | 1 |
| 13 | 4002-302-022 | SHIM-0.30mm | . | 1 |
| 13 | 4002-302-023 | SHIM-0.20mm | . | 1 |
| 13 | 4002-302-032 | SHIM-0.10mm | . | 1 |
| 14 | 0750-117-057 | ROLLER BEARING | ** | 2 |
| 15 | 4108-303-214 | BUSHING | . | 1 |
| 16 | 0737-502-128 | SLOTTED NUT | . | 1 |
| 17 | 0730-000-874 | WASHER-1.0mm | . | 1 |
| 17 | 0730-002-241 | WASHER-0.8mm | . | 1 |
| 17 | 0730-002-242 | WASHER-0.5mm | . | 1 |
| 17 | 0730-002-243 | WASHER-0.4mm | . | 1 |
| 17 | 0730-002-244 | WASHER-0.3mm | . | 1 |
| 17 | 0730-002-245 | WASHER-0.2mm | . | 1 |
| 18 | 0635-332-060 | BALL BEARING | ** | 1 |
| 19 | 0750-116-105 | BALL BEARING | ** | 1 |
| 20 | 0630-501-038 | RETAINING RING | . | 1 |
| 21 | 4108-202-027 | BEVEL GEAR SET | . | 1 |
| 22 | 4108-303-160 | RING | . | 1 |
| 23 | 4108-201-199 | BEARING HOUSING | . | 1 |
| 24 | 4108-303-219 | PLANETARY CARRIER | . | 1 |
| 25 | 0750-117-012 | ROLLER BEARING | ** | 1 |
| 26 | 4108-306-146 | PLANETARY GEAR | . | 3 |
| 27 | 0730-100-233 | WASHER-0.2mm | . | 1 |
| 27 | 0730-100-584 | WASHER-0.3mm | . | 1 |
| 27 | 0730-103-018 | WASHER-0.5mm | . | 1 |
| 27 | 0730-103-019 | WASHER-0.7mm | . | 1 |
| 28 | 0630-004-189 | SUPPORT SHIM | . | 1 |
| 29 | 0730-102-684 | THRUST WASHER | . | 6 |
| 30 | 0630-502-067 | RETAINING RING | . | 1 |
| 31 | 4108-306-102 | RING | . | 1 |
| 32 | 0730-102-816 | INTERMEDIATE WASHER | . | 12 |
| 33 | 0734-307-142 | SEALING COLLAR | . | 1 |
| 34 | 0750-119-092 | NEEDLE BEARING | ** | 138 |
| 35 | 4108-303-239 | BEARING FLANGE | . | 1 |
| 36 | 0631-405-018 | PLUG | . | 1 |
| 37 | 4108-306-091 | PIN | . | 3 |
| 38 | 4108-306-101 | CLUTCH HOUSING | . | 1 |
| 39 | 0630-501-031 | RETAINING RING | . | 1 |
| 40 | 0737-502-084 | SLOTTED NUT | . | 1 |
| 41 | 0635-331-269 | BALL BEARING/td> | ** | 1 |
| 42 | 0635-285-013 | JOINT BEARING | ** | 1 |
| 43 | 0750-116-137 | BALL BEARING | ** | 1 |
| 44 | 0630-503-018 | SNAP RING | . | 1 |
| 45 | 4108-203-149 | OIL DIPSTICK | . | 1 |
| 46 | F.W.I.ONLY | . | . | . |
| 47 | F.W.I.ONLY | . | . | . |
| 48 | F.W.I.ONLY | . | . | . |
| 49 | F.W.I.ONLY | . | . | . |
| 50 | F.W.I.ONLY | . | . | . |
| 51 | 4108-302-005 | PLANETARY CARRIER | . | 1 |
| 52 | 4108-302-007 | BEARING PLATE | . | 1 |
| 53 | 4108-308-023 | PLANETARY GEAR | . | 3 |
| 54 | 0730-150-238 | THRUST WASHER | . | 6 |
| 55 | 0730-102-311 | THRUST WASHER | . | 6 |
| 56 | 4108-302-004 | PIN | . | 3 |
| 57 | 0630-501-025 | RETAINING RING | . | 3 |
| 58 | 0750-119-108 | NEEDLE BEARING | ** | 57 |
| 59 | 0635-332-196 | BALL BEARING | ** | 1 |
| 60 | 4108-306-147 | SUN GEAR | . | 1 |
| 61 | 0636-101-667 | SOCKET HEAD CAP SCREW | . | 27 |
| 62 | 4108-302-063 | LIFTING BRACKET | . | 1 |
| 63 | 0636-101-729 | SOCKET HEAD CAP SCREW | . | 3 |
| N/S | 4108-303-213 | GASKET | . | 1 |
