ZF PK-6500 GEARBOX
REBUILT GEARBOXES AND PARTS

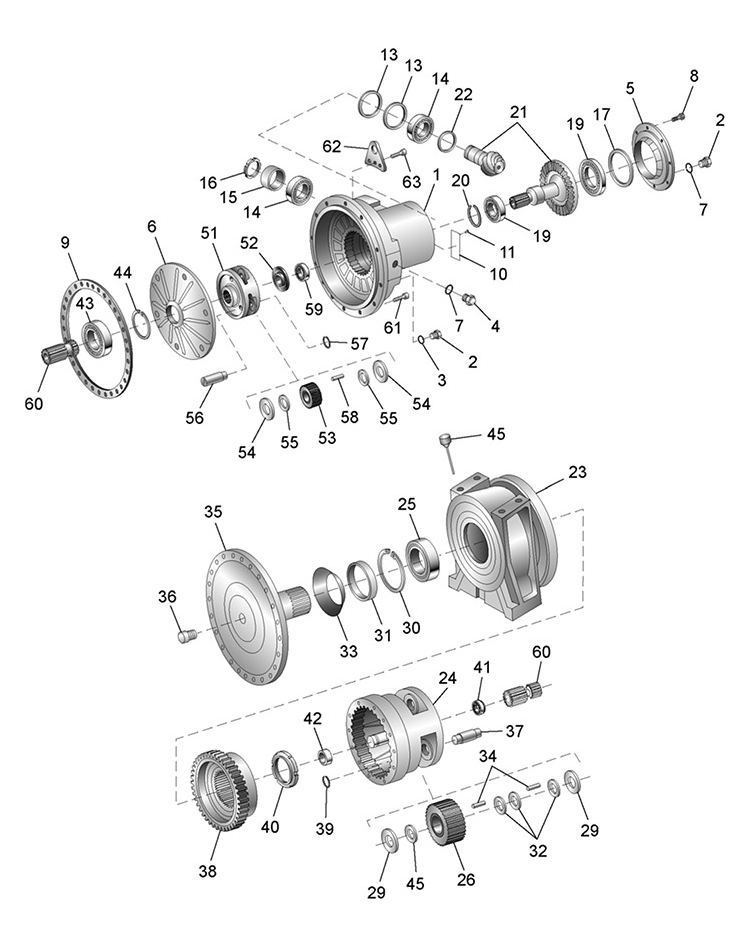

PK-6500
ITEM # PART NUMBER PART DESCRIPTION...... KIT QUANTITY
. PK-6500EX GEARBOX-REBUILT . .
* PK-6500SK SEAL KIT . 1
** PK-6500BK BEARING KIT . 1
1 4108-201-281 HOUSING . 1
2 0636-302-015 SCREW PLUG . 3
3 0634-304-287 "O"RING * 2
4 0632-610-066 OIL SIGHT GLASS . 1
5 4108-303-034 COVER . 1
6 4108-301-293 BEARING COVER . 1
7 0634-801-074 SEALING RING * 2
8 0636-015-120 HEX HEAD CAP SCREW . 8
9 4108-306-172 GASKET * 1
10 0730-365-127 NAME PLATE . 1
11 0631-311-009 GROOVED STUD . 1
12 0730-005-754 SHIM-2.20mm . 1
12 0730-006-871 SHIM-2.30mm . 1
12 0730-005-753 SHIM-2.40mm . 1
12 0730-006-874 SHIM-2.50mm . 1
12 0730-005-752 SHIM-2.60mm . 1
12 0730-007-237 SHIM-2.70mm . 1
13 4002-302-021 SHIM-0.50mm . 1
13 4002-302-022 SHIM-0.30mm . 1
13 4002-302-023 SHIM-0.20mm . 1
13 4002-007-558 SHIM-0.40mm . 1
14 0750-117-057 ROLLER BEARING ** 2
15 4108-303-214 BUSHING . 1
16 0737-502-128 SLOTTED NUT . 1
17 0730-000-874 WASHER-1.0mm . 1
17 0730-002-241 WASHER-0.8mm . 1
17 0730-002-242 WASHER-0.5mm . 1
17 0730-002-243 WASHER-0.4mm . 1
17 0730-002-244 WASHER-0.3mm . 1
17 0730-002-245 WASHER-0.2mm . 1
18 0750-116-188 BALL BEARING ** 1
19 0750-116-235 BALL BEARING ** 1
20 0630-531-057 RETAINING RING . 1
21 4108-209-049 BEVEL GEAR SET . 1
22 4108-303-160 RING . 1
23 4108-203-154 BEARING HOUSING . 1
24 4108-303-283 PLANETARY CARRIER . 1
25 0750-117-604 ROLLER BEARING ** 1
26 4108-303-298 PLANETARY GEAR . 3
27 NOT USED . . .
27 NOT USED . . .
27 NOT USED . . .
27 NOT USED . . .
28 NOT USED . . .
29 0730-102-684 THRUST WASHER . 6
30 0630-502-067 RETAINING RING . 1
31 4108-306-102 RING . 1
32 0730-102-816 INTERMEDIATE WASHER . 12
33 0734-112-169 SEALING COLLAR . 1
34 0750-119-092 NEEDLE BEARING ** 138
35 4108-303-292 BEARING FLANGE . 1
36 0631-405-018 PLUG . 1
37 4108-303-289 PIN . 3
38 4108-306-101 CLUTCH HOUSING . 1
39 0630-501-031 RETAINING RING . 1
40 0737-502-084 SLOTTED NUT . 1
41 0635-331-269 BALL BEARING ** 1
42 0635-285-013 JOINT BEARING ** 1
43 0750-116-137 BALL BEARING ** 1
44 0630-503-018 SNAP RING . 1
45 4108-203-149 OIL DIPSTICK . 1
46 F.W.I.ONLY . . .
47 F.W.I.ONLY . . .
48 F.W.I.ONLY . . .
49 F.W.I.ONLY . . .
50 F.W.I.ONLY . . .
51 4108-308-038 PLANETARY CARRIER . 1
52 4108-302-007 BEARING PLATE . 1
53 4108-308-037 PLANETARY GEAR . 4
54 0730-150-238 THRUST WASHER . 8
55 0730-102-311 THRUST WASHER . 8
56 4108-302-004 PIN . 4
57 0630-501-025 RETAINING RING . 4
58 0735-470-179 NEEDLE BEARING ** 76
59 0635-332-196 BALL BEARING ** 1
60 4108-303-296 SUN GEAR . 1
61 0636-101-071 SOCKET HEAD CAP SCREW . 27
62 4108-302-199 LIFTING BRACKET . 1
63 0636-101-073 SOCKET HEAD CAP SCREW . 3
N/S 4108-303-213 GASKET . 1
