REX 770 GEARCASE

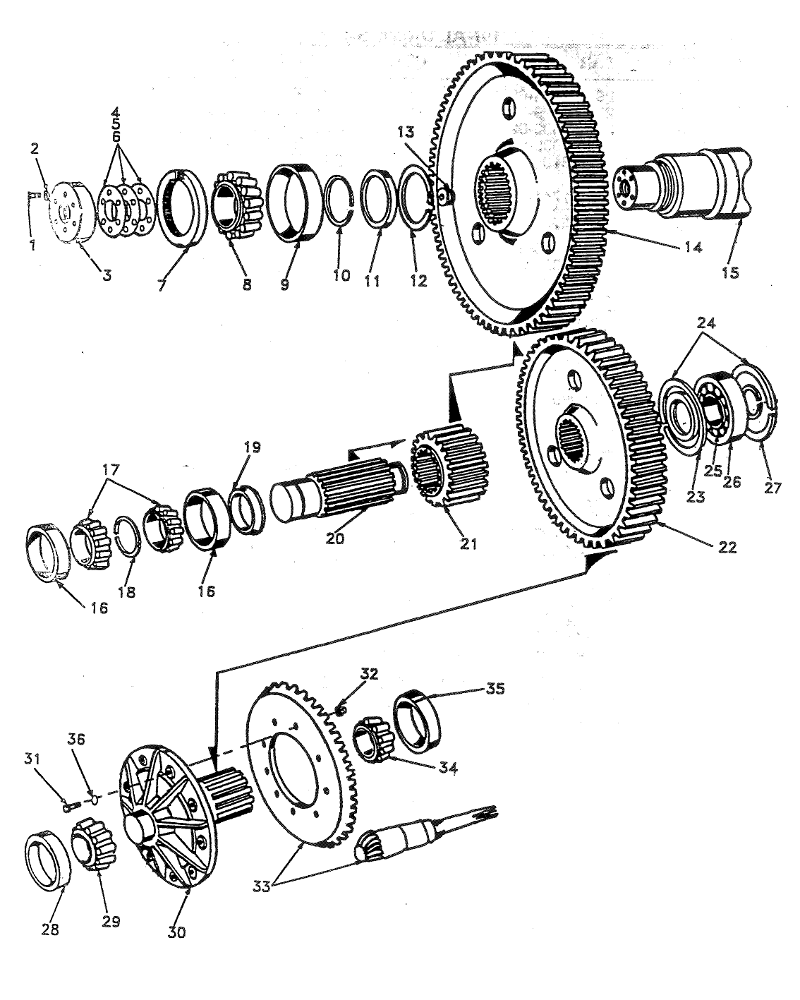

CLICK IMAGE FOR EXPANDED VIEW
| REX GEARBOX INTERNAL GEARS | ||||
|---|---|---|---|---|
| ITEM # | PART NUMBER | PART DESCRIPTION...... | KIT | QUANTITY |
| 1 | 298-00094-93 | SOCKET HEAD CAP SCREW | . | 6 |
| 2 | 398-20000-39 | LOCK WASHER | . | 6 |
| 3 | 102-30298-01 | RETAINER-OIL SEAL | . | 1 |
| 4 | 102-09461-05 | SHIM-0.005" | *** | 3 |
| 5 | 102-09461-07 | SHIM-0.007" | *** | 3 |
| 6 | 102-09461-20 | SHIM-0.020" | *** | 1 |
| 7 | X7795 | OIL SEAL | . | 1 |
| 8 | 298-00302-02 | CONE BEARING | ** | 1 |
| 9 | 298-00301-02 | CUP BEARING | ** | 1 |
| 10 | 298-08522-34 | RETAINING RING | . | 1 |
| 11 | 102-08990-01 | SPACER | . | 1 |
| 12 | 298-07525-34 | RETAINING RING | . | 1 |
| 13 | 398-14005-80 | PLUG | . | 1 |
| 14 | 402-02619-03 | GEAR-51T | . | 1 |
| 15 | 102-04909-01 | SHAFT | . | 1 |
| 16 | 102-00325-02 | CUP BEARING | ** | 2 |
| 17 | 102-00326-02 | CONE BEARING | ** | 2 |
| 18 | 298-08525-34 | RETAINING RING | . | 1 |
| 19 | 102-09300-01 | SPACER | . | 1 |
| 20 | 102-30227-01 | INTERMEDIATE SHAFT | . | 1 |
| 21 | 402-01733-02 | PINION-15T | . | 1 |
| 22 | 402-02620-04 | GEAR-83T | . | 1 |
| 23 | 102-09302-01 | SPACER | . | 1 |
| 24 | 298-07526-34 | RETAINING RING | . | 2 |
| 25 | 298-00373-02 | INNER RACE | ** | 1 |
| 26 | 298-00374-02 | OUTER RACE | ** | 1 |
| 27 | 298-08524-34 | RETAINING RING | . | 1 |
| 28 | 298-00305-02 | CUP BEARING | ** | 1 |
| 29 | 298-00306-02 | CONE BEARING | ** | 1 |
| 30 | 502-04753-80 | BEVEL GEAR CARRIER | . | 1 |
| 31 | 298-00208-93 | HEX HEAD CAP SCREW | . | 10 |
| 32 | 298-02058-71 | LOCK NUT | . | 10 |
| 33 | 502-04709-80 | SPIRAL BEVEL GEAR | . | 1 |
| 34 | 298-00066-02 | CONE BEARING | ** | 1 |
| 35 | 298-00067-02 | CUP BEARING | ** | 1 |
| 36 | 298-00039-97 | WASHER | . | 10 |
